Z10 Signature Line
The groundbreaking Z10 with P.R.G. for hot and cold brew speciality coffees
A masterpiece of Swiss engineering, the new Z10 doubles the range of speciality coffees. At the touch of a button it prepares the full spectrum of hot drinks from intense espresso to on-trend flat white. It also opens up a whole new dimension in the enjoyment of coffee with the introduction of cold brew specialities. This is made possible thanks to the Product Recognising Grinder (P.R.G.), which recognises the chosen speciality and instantly and precisely adjusts the fineness of grind accordingly.
Z10 Signature Line - Aluminium Dark Inox (EA)
returnForm_articleNumber 15368
The new Product Recognising Grinder (P.R.G.)
To ensure the optimum grind for every speciality, JURA engineers developed the Product Recognising Grinder (P.R.G.). The electronically controlled high-performance grinder adjusts in a fraction of a second to the predefined consistency of grind – much more quickly and frequently than could be done manually. Its spectrum ranges from very fine for short classics to very coarse for long specialities. But coffee lovers don’t need to worry, because the adjustment takes place automatically every time a beverage is prepared and, if preferred, can also be individually selected before each preparation with the Aroma Selection feature.

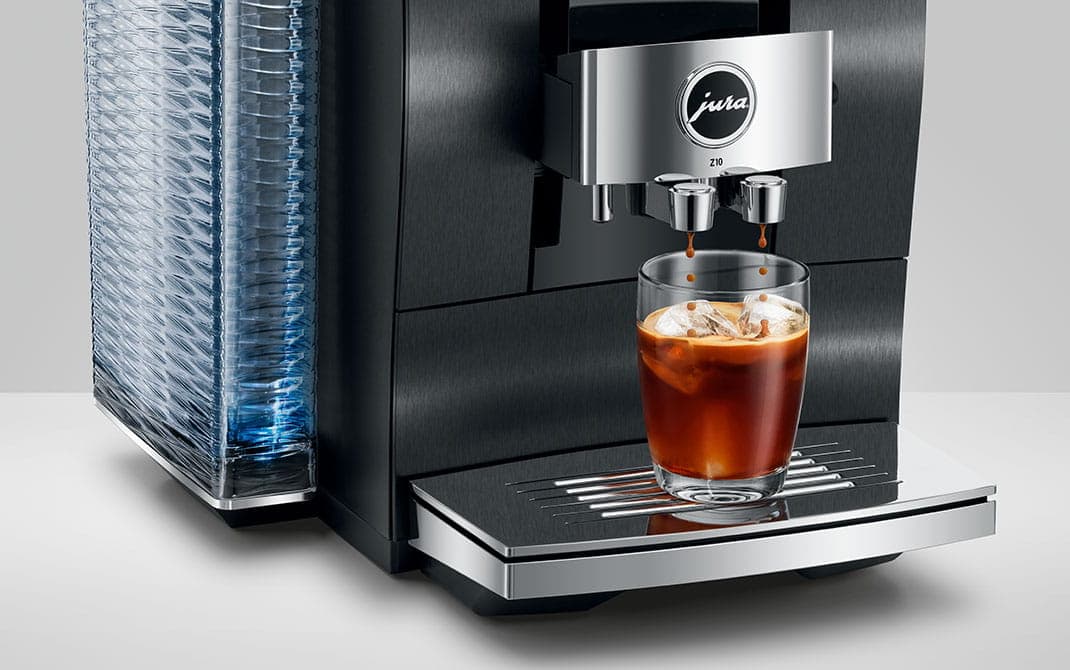

Cold brew – extreme freshness
Thanks to the Cold Extraction Process, the Z10 prepares genuine cold brew specialities. While many conventional cold coffee drinks consist mostly of hot-brewed coffee which is then chilled, in the Z10 extraction takes place with cold water, pulsed at high pressure, and more coarsely ground coffee. The end result is a natural, energising and refreshing beverage in which the fruity aromas of the coffee can be fully enjoyed without being overwhelmed by bitters. Anything else would just be a cold coffee.

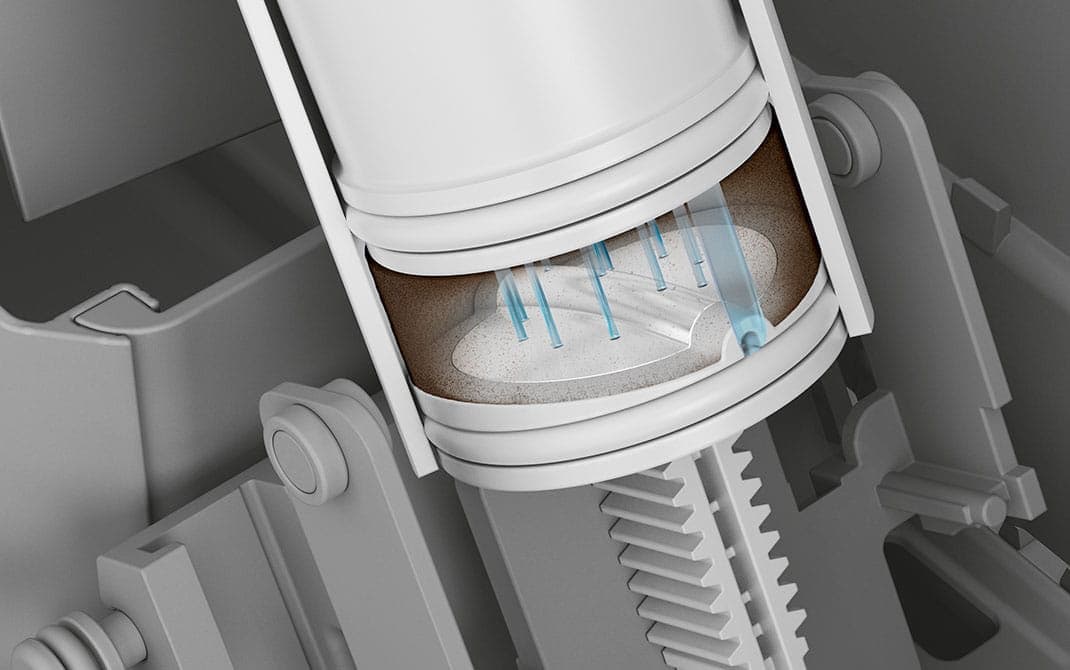

Eighth-generation brewing unit
The brewing unit is the most important part of any automatic coffee machine. For the Z10, JURA has created the eighth-generation brewing unit. With its unique 3D brewing technology, it allows the water to flow evenly through the ground coffee at multiple levels. This makes the most of the aroma, both in hot specialities and with cold brewing.

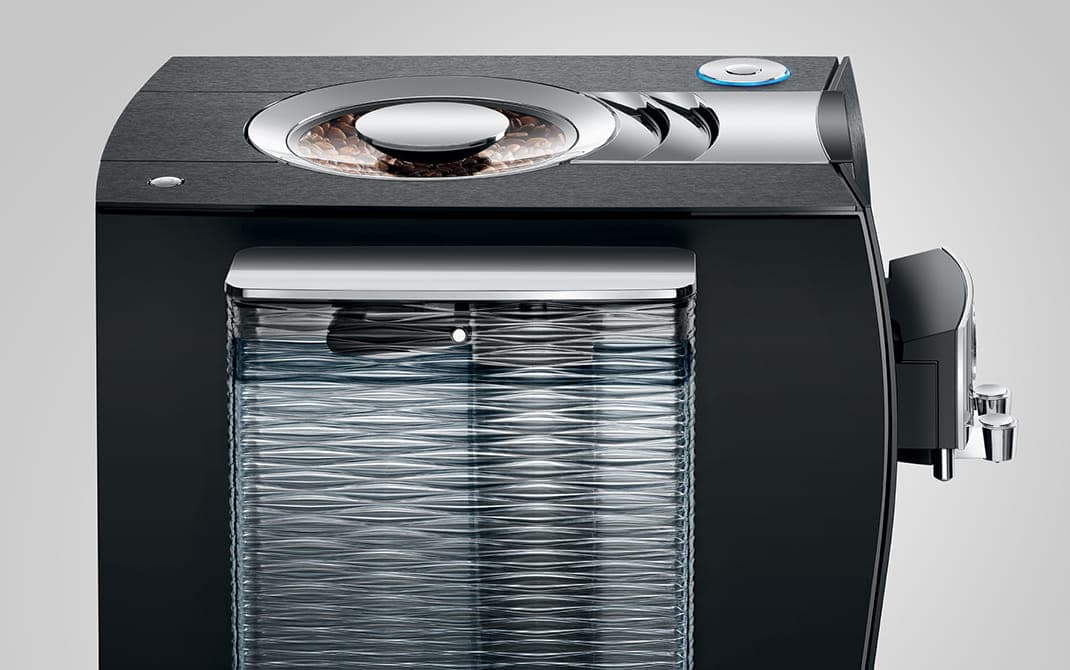

Luxury at its most refined
In the Signature Line, JURA uses solid 3 mm-thick aluminium for the front and top sections. The material is carefully crafted to form the characteristic ‘face’ of the Z line. The refined surface finish is achieved with the electrochemical process of anodising. The colour emphasises both the typical character of the material and the design. A cup grille made of heavy, chrome-plated, die-cast zinc completes the distinguished look of the Z10 Signature Line.

Z10 Signature Line: Specifications
| Number of specialities | 40 |
|---|---|
| Espresso | |
| Cold Brew Espresso | |
| 2 × Espresso | |
| Coffee | |
| Cold Brew Coffee | |
| 2 × Coffee | |
| Americano | |
| 2 x Americano | |
| Lungo | |
| 2 x Lungo | |
| Espresso doppio | |
| Pot of coffee | |
| Cortado | |
| Cold Brew Cortado | |
| Sweet Cortado | |
| Espresso macchiato | |
| Cold Brew Espresso macchiato | |
| Sweet Espresso macchiato | |
| Caffè latte | |
| Cold Brew Caffè latte | |
| Sweet Caffè latte | |
| Caffè latte Extra Shot | |
| Cappuccino | |
| Cold Brew Cappuccino | |
| Sweet Cappuccino | |
| Cappuccino Extra Shot | |
| Flat white | |
| Cold Brew flat white | |
| Sweet Flat White | |
| Flat white Extra Shot | |
| Latte macchiato | |
| Cold Brew Latte macchiato | |
| Sweet Latte macchiato | |
| Latte macchiato Extra Shot | |
| Portion of milk foam | |
| Sweet portion of milk foam | |
| Portion of milk | |
| Sweet Portion of milk | |
| Hot water | |
| Hot water for green tea |
| Cold Extraction Process | |
|---|---|
| Sweet Foam Function | |
| Automatic Grinder Adjustment (A.G.A.) | |
| Active bean monitoring | |
| Automatic switching between milk and milk foam | |
| Wi-Fi connection to home network | |
| Transmitter supplied as standard | Wi-Fi Connect |
| Grinder | Product Recognising Grinder (P.R.G.) |
|---|---|
| Powder chute for ground coffee | |
| Lungo function | |
| Pulse Extraction Process (P.E.P.®) | |
| Variable brewing unit | 5 – 16 g |
| High-performance pump, 15 bar | 1 |
| Thermoblock heating system | 1 |
| Fluid systems | 1 |
| Milk system / interchangeable milk spout | HP3 / CX3 |
| Display | 4.3" touchscreen colour display |
|---|---|
| Position, duplicate and personalise products according to personal preference | |
| Individually programmable quantity of water for coffee | |
| Individually programmable coffee strength | 10 levels |
| Individually programmable consistency of grind | 5 levels |
| Individually programmable brewing temperature | 3 levels |
| Individually programmable amount of milk/milk foam | |
| Individually programmable milk/milk foam temperature | 10 levels |
| Individually programmable hot water temperature | 3 levels |
| Compatible with J.O.E.® | |
| Rotary Switch |
| Automatic filter detection | |
|---|---|
| Filter cartridge | CLARIS Smart+ |
| One-Touch milk system cleaning (automatic) | |
| Integrated rinsing, cleaning and descaling programme | |
| Monitored drip tray | |
| JURA hygiene: TÜV-certified |
| Energy Save Mode (E.S.M.©) | |
|---|---|
| Zero-Energy Switch or power switch | |
| Programmable switch-off time |
| Convex-concave 3 mm aluminium front | |
|---|---|
| Cup illumination | |
| Water tank illumination |
| Height-adjustable/width-adjustable dual spout | 78 – 150 mm / 24 – 50 mm |
|---|---|
| Height-adjustable hot-water spout | 82 – 154 mm |
| Water tank capacity | 2.4 l |
| Bean container holding capacity | 280 g |
| Coffee grounds container (approx. servings) | 20 |
| Cable length | 1.1 m |
| Voltage / power | 230 V ~ / 1450 W |
| Current | 10 A |
| Energy consumption / energy efficiency class | / |
| Stand-by power | 0 W |
| Weight | 13 kg |
| Dimensions (W × H × D) | 32 × 36.3 × 47 cm |
| Article number, product code | 15368, Aluminium Dark Inox (EA) |
| EAN code | 7610917153688 |
| Country of production | Made in Switzerland |
| Model year | 2021 |
Z10 (EA/SA/INTA) Instructions for Use EN
Z10 (EA/SA/INTA) Instructions for Use EN
(PDF, 3.9 MB)
Z10 (EA/SA/INTA) Manual de instruções PT
(PDF, 4.2 MB)
Z10 (EA/SA/INTA) Керівництво з експлуатації кавоварки UA
(PDF, 3.5 MB)
Z10 (EA/SA/INTA) 取扱説明書 (JP)
(PDF, 7.8 MB)
Z10 (EA/SA/INTA) Istruzioni per l‘uso IT
(PDF, 4.2 MB)
Z10 (EA/SA/INTA) Bruksanvisning SV
(PDF, 3.9 MB)
Z10 (EA/SA/INTA) Mode d’emploi FR
(PDF, 4 MB)
Z10 (EA/SA/INTA) Руководство по эксплуатации RU
(PDF, 4 MB)
Z10 (EA/SA/INTA) Käyttöohje FI
(PDF, 3.9 MB)
Z10 (EA/SA/INTA) Kasutusjuhend EE
(PDF, 4.1 MB)
Z10 (EA/SA/INTA) Modo de empleo ES
(PDF, 4.2 MB)
Z10 (EA/SA/INTA) Instrukcja obsługi PL
(PDF, 4.1 MB)
Z10 (EA/SA/INTA) NO
(PDF, 3.9 MB)
Z10 (EA/SA/INTA) Bedienungsanleitung DE
(PDF, 3.9 MB)
Z10 (EA/SA/INTA) Gebruiksaanwijzing NL
(PDF, 4.2 MB)
Z10 (EA/SA/INTA) Betjeningsvejledning DA
(PDF, 3.9 MB)
Z10 (EA/SA/INTA) Lietošanas pamācība LV
(PDF, 4.1 MB)
Z10 (EA/SA/INTA) Naudojimo instrukcija LT
(PDF, 4.1 MB)
使用说明书 Z10 CN
(PDF, 3.5 MB)
Changing the filter
Thanks to the integrated RFID (Radio-Frequency-Identification) chip, the CLARIS Smart continuously records information about filter use and alerts the user when the filter capacity has been used up. CLARIS Smart is automatically detected by the coffee machine and water is automatically routed through it.
Descaling the machine
Scale is the biggest enemy of any appliance that uses water. Only use JURA descaling tablets, which remove scale gently to extend the life of your coffee machine.
Cleaning the machine
Cleaning extends the life of your coffee machine and keeps the coffee quality at the highest level. Only use JURA cleaning tablets, which are specially designed to work with the cleaning programme.
Cleaning the milk system
It's easy to keep the milk system in the dual spout hygienic and working perfectly. Just remember to clean the milk system every day if you have been preparing milk. This only takes about two minutes. Only use JURA milk system cleaner, which is specially formulated to clean the milk system.
Optimum use of your Z10
Discover how best to use and care for your Z10. By following these tips, you can keep your coffee machine hygienic and always enjoy the perfect cup of coffee.
